Components Location

[LHD]

Fig 1: Front Suspension System Replacement Components (RHD) (1 Of 2)
G10604807Courtesy of HYUNDAI MOTOR AMERICA

[RHD]

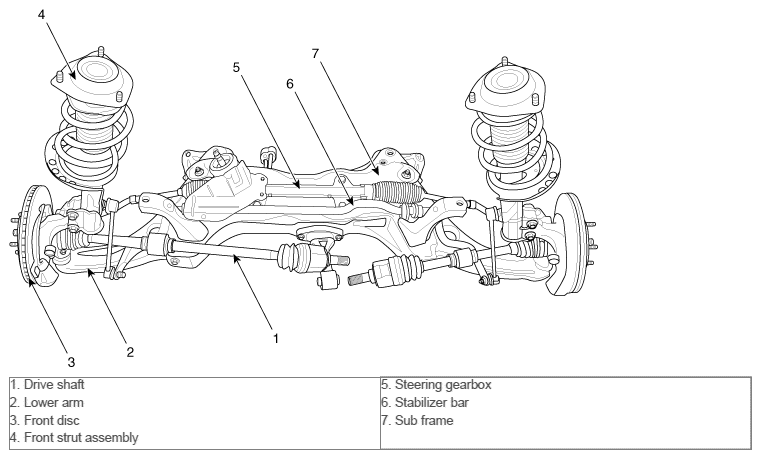

Fig 2: Front Suspension System Replacement Components (RHD) (2 Of 2)
G10604808Courtesy of HYUNDAI MOTOR AMERICA
