Components and Components Location: Components

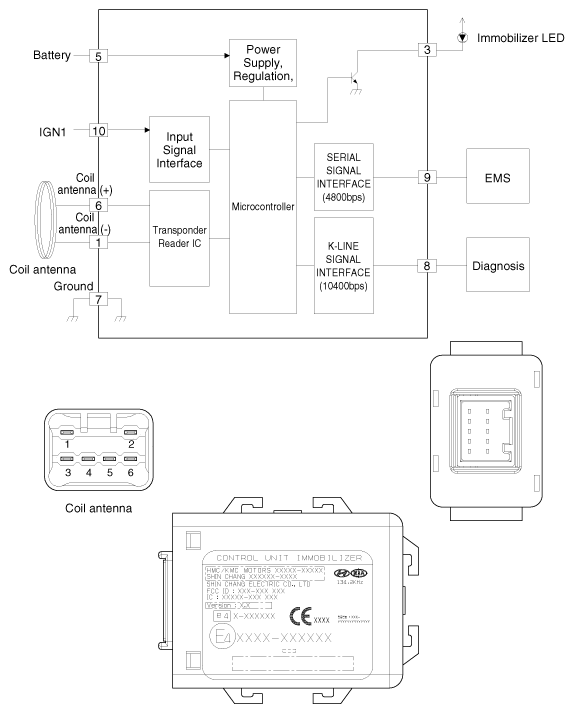

Fig 1: Immobilizer System Block Diagram

G10606059

Courtesy of HYUNDAI MOTOR AMERICA
