Driver Power Window Switch

[Driver Power Window Switch (Safety)]

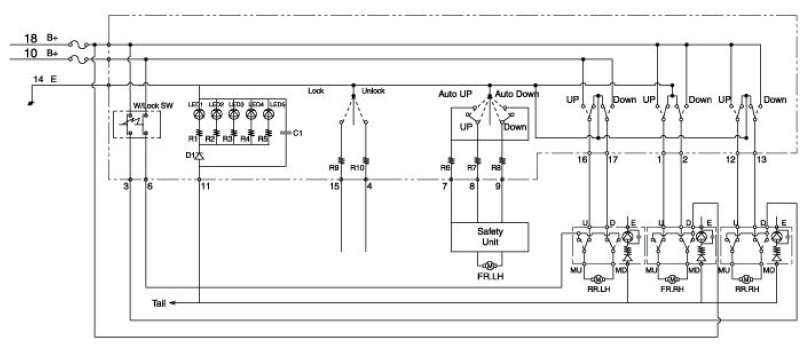

Fig 1: Driver Power Window Switch Circuit Diagram (Safety)
G11670043Courtesy of HYUNDAI MOTOR AMERICA

[Driver Power Window Switch (Auto Down)]

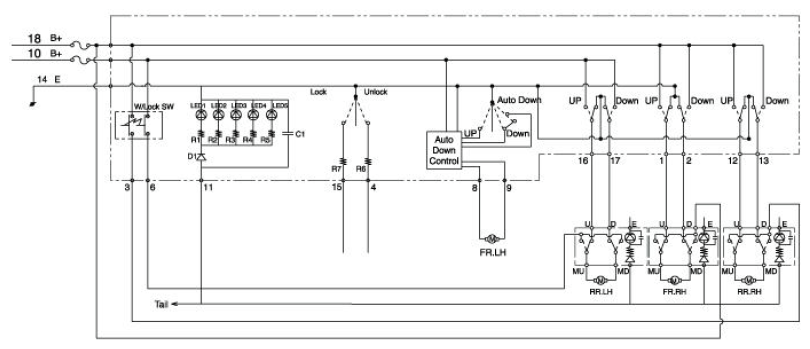

Fig 2: Driver Power Window Switch Circuit Diagram (Auto Down)
G11670044Courtesy of HYUNDAI MOTOR AMERICA
