Components and Components Location: Components: Notes

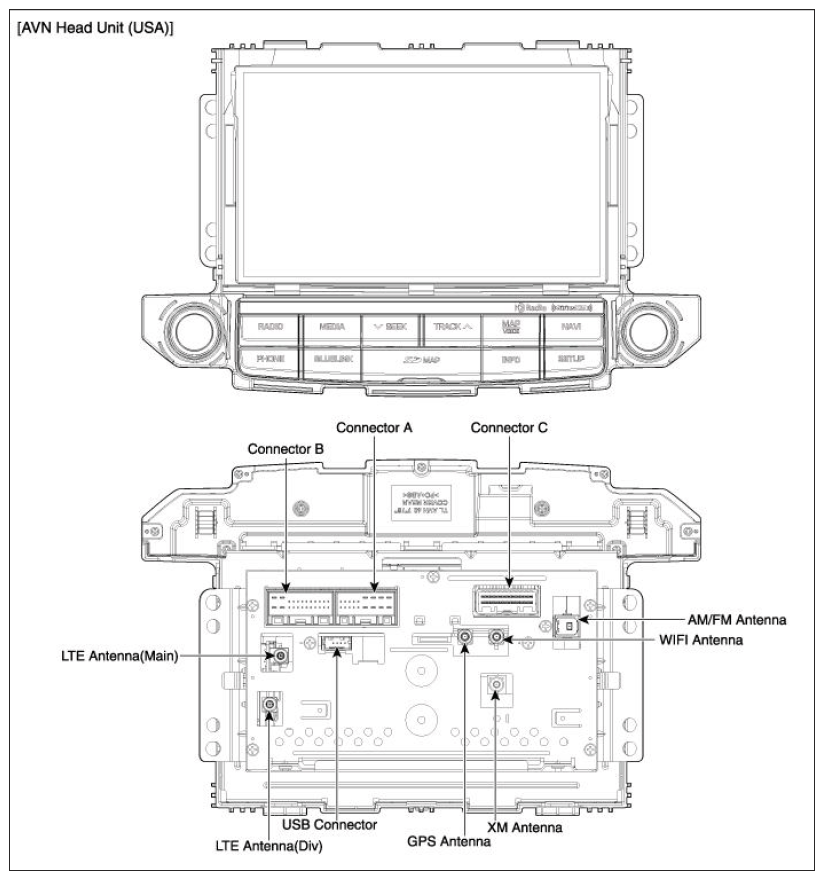

Fig 1: Audio Video Navigation Head Unit Components Location (1 Of 2)
G11669734Courtesy of HYUNDAI MOTOR AMERICA

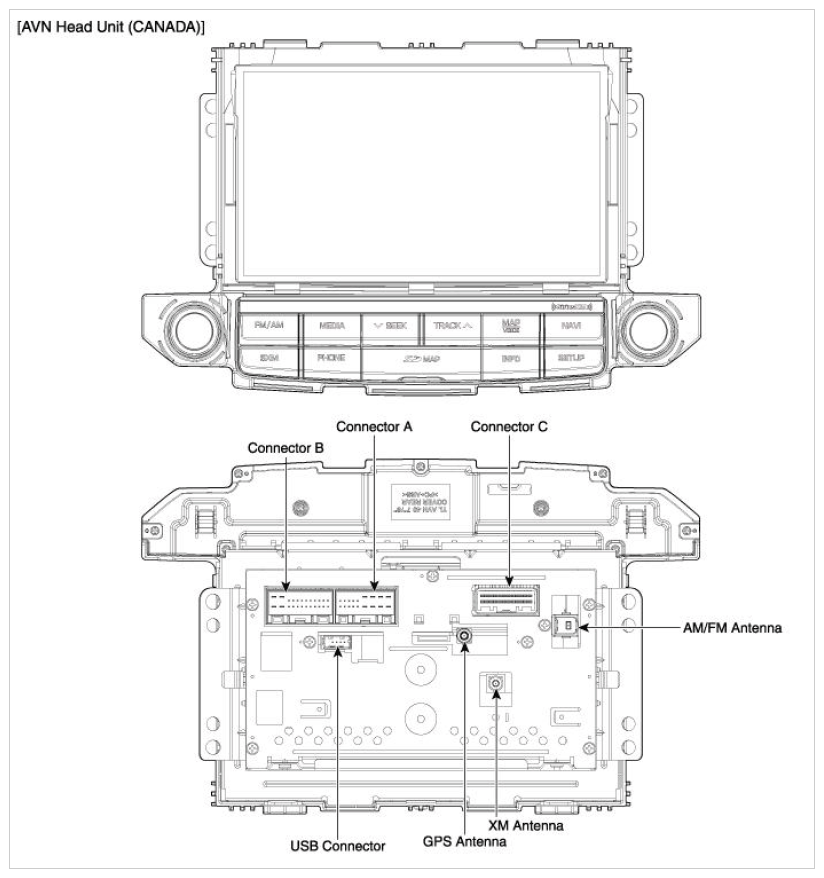

Fig 2: Audio Video Navigation Head Unit Components Location (2 Of 2)
G11669735Courtesy of HYUNDAI MOTOR AMERICA
