Components and Components Location: Components

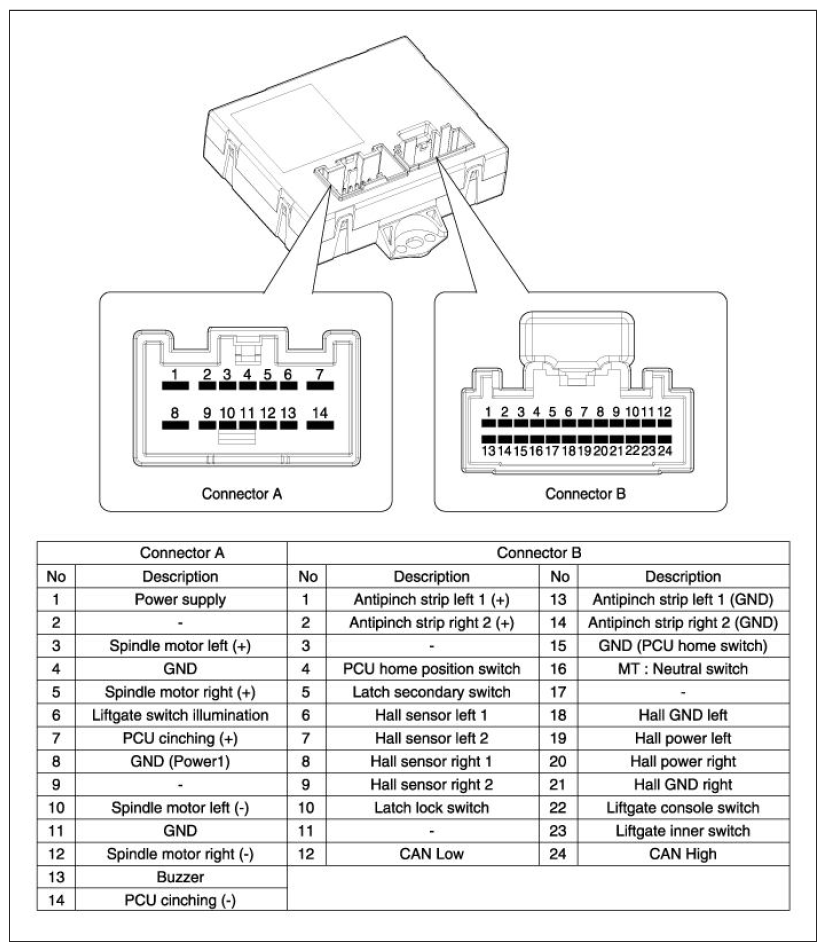

Fig 1: Locating Power Liftgate Module Connector Terminals

G11670098

Courtesy of HYUNDAI MOTOR AMERICA
