Repair Procedures: Inspection: Notes
Inspection Flow of the Inhibitor Switch

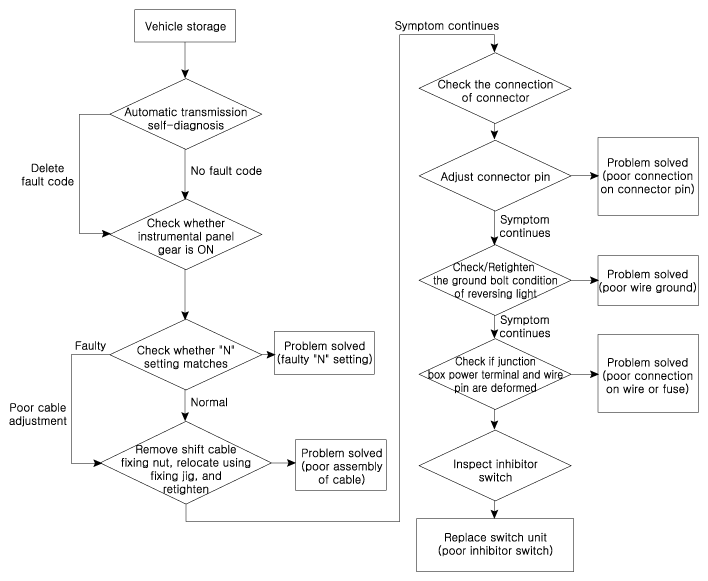

Fig 1: Inhibitor Switch Inspection Flow Chart
Courtesy of HYUNDAI MOTOR AMERICA
