Components and Components Location: Components

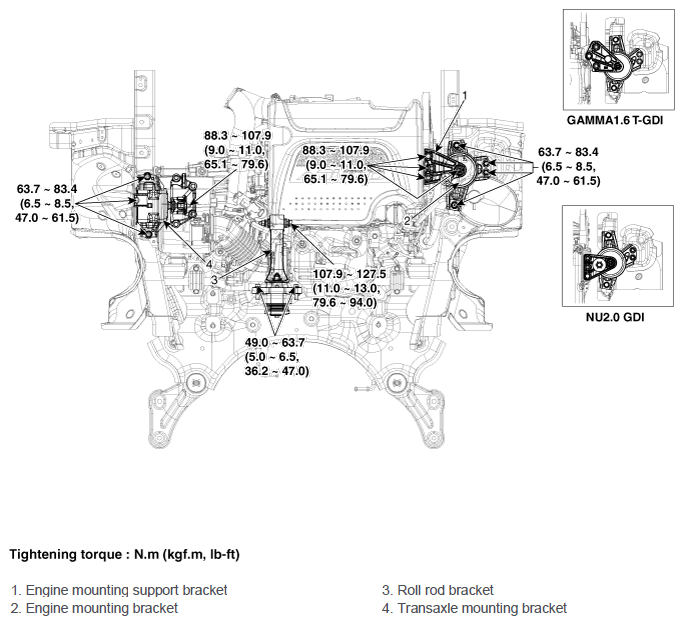

Fig 1: Engine Mounting Components Location With Torque Specifications

G11643099

Courtesy of HYUNDAI MOTOR AMERICA
