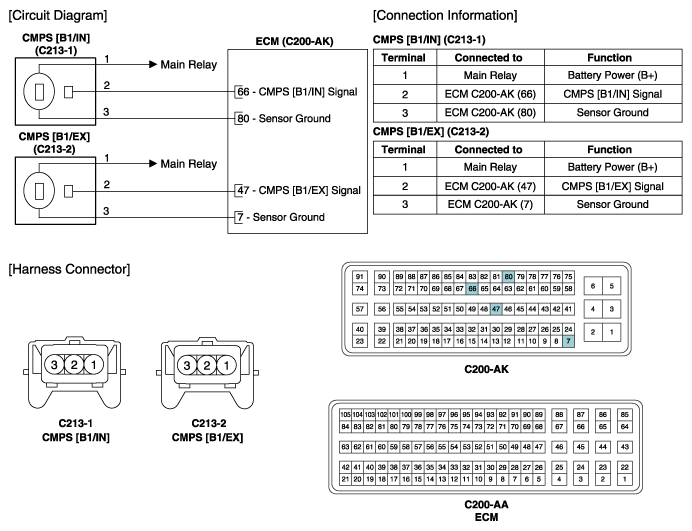

Home >> Hyundai >> 2016 >> Tucson SE, 4WD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> Camshaft Position Sensor (CMPS) >> Schematic Diagrams >> Circuit Diagram
