Driver/Assist Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Proceed to Body - "FRONT DOOR TRIM ")

  3. Loosen the mounting screws.

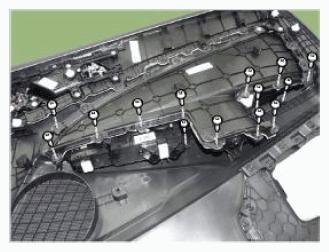

    Fig 1: Removing Driver/Assist Power Window Switch Panel
    G11670059Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the door trim armrest (A).

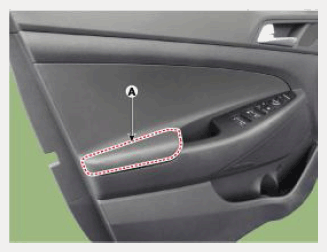

    Fig 2: Locating Door Trim Armrest
    G11670060Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the power window switch assembly (A).

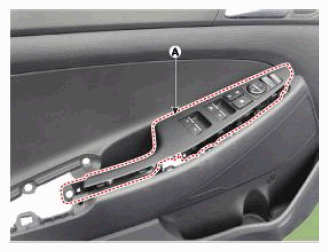

    Fig 3: Power Window Switch Assembly
    G11670061Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the power window switch (A) after loosening the mounting screws.

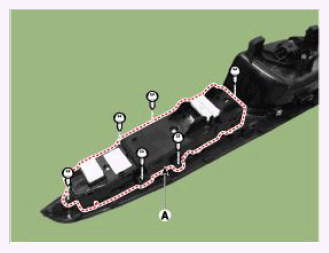

    Fig 4: Loosening Power Window Switch Mounting Screws
    G11670062Courtesy of HYUNDAI MOTOR AMERICA
