Rear Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim.

    (Proceed to Body - "REAR DOOR TRIM ")

  3. Disconnect the power mirror switch connector from the door trim.

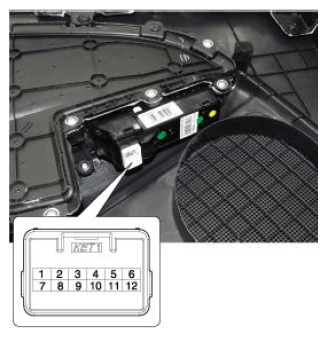

    Fig 1: Locating Power Mirror Switch Connector Pins
    G11670056Courtesy of HYUNDAI MOTOR AMERICA
  4. Check for continuity between the terminals in each switch position as displayed below.

    [Rear Power Window Switch Inspection]

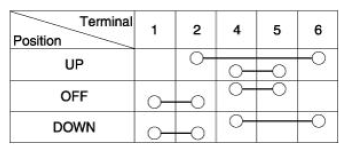

    Fig 2: Rear Power Window Switch Connector Terminals Continuity Chart
    G11670057Courtesy of HYUNDAI MOTOR AMERICA

    [Rear Sear Heater Switch Inspection]

    Fig 3: Rear Sear Heater Switch Connector Terminals Continuity Chart
    G11670058Courtesy of HYUNDAI MOTOR AMERICA
