Assist Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the assist door trim.

    (Proceed to Body - "FRONT DOOR TRIM ")

  3. Disconnect the power mirror switch connector from the door trim.

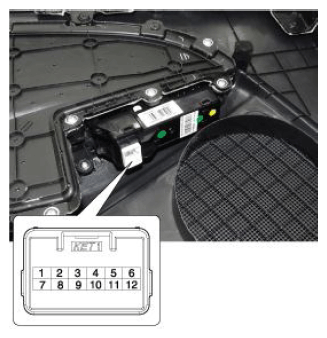

    Fig 1: Locating Power Mirror Switch Connector
    G11670053Courtesy of HYUNDAI MOTOR AMERICA
  4. Check for continuity between the terminals in each switch position as displayed below.

    [Power Window Switch Inspection]

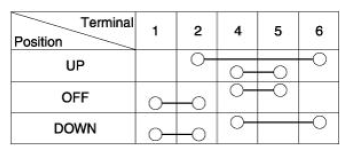

    Fig 2: Power Window Switch Connector Terminals Continuity Chart
    G11670054Courtesy of HYUNDAI MOTOR AMERICA

    [Power Door Lock Switch Inspection]

    Fig 3: Power Door Lock Switch Connector Terminals Continuity Chart
    G11670055Courtesy of HYUNDAI MOTOR AMERICA
