Front Power Window Motor

1. Disconnect the negative (-) battery terminal.
2. Remove the front door trim.

   (Proceed to Body - "FRONT DOOR TRIM ")

3. Disconnect the motor connector from the motor.

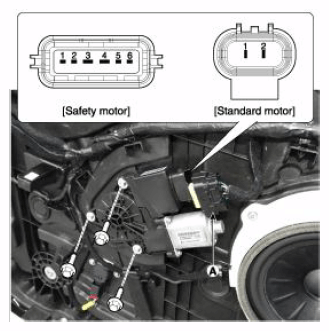

   Fig 1: Disconnecting Motor Connector From Motor

   Courtesy of HYUNDAI MOTOR AMERICA
4. Connect the terminal No. 2 and No. 3 to battery voltage (12V) and check that the motor operates smoothly when connecting the terminals below.

   [Safety Window Motor]

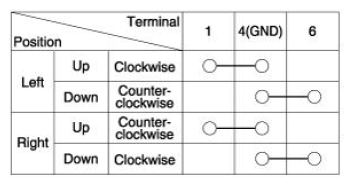

   Fig 2: Safety Window Motor Connector Terminals Continuity Chart

   Courtesy of HYUNDAI MOTOR AMERICA
5. Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.

   [Standard Window Motor]

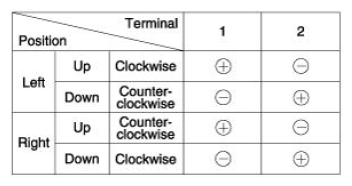

   Fig 3: Standard Window Motor Connector Terminals Continuity Chart

   Courtesy of HYUNDAI MOTOR AMERICA

Rear Power Window Motor

1. Disconnect the negative (-) battery terminal.
2. Remove the rear door trim.

   (Proceed to Body - "REAR DOOR TRIM ")

3. Disconnect the motor connector from the motor.

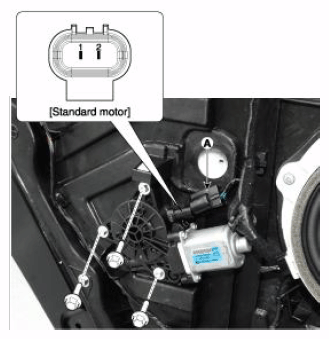

   Fig 4: Locating Rear Power Window Motor Connector

   Courtesy of HYUNDAI MOTOR AMERICA
4. Connect the motor terminals No. 1 and No. 2 directly to battery voltage (12V) and check that the motor operates smoothly. If the operation is abnormal, replace the motor.

   [Standard Window Motor]

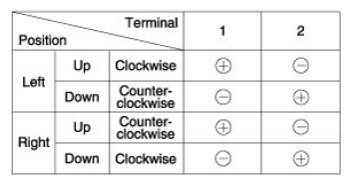

   Fig 5: Battery And Rear Power Window Motor Terminals Chart
