Smart Key Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Proceed to Body - "CRASH PAD LOWER PANEL ")

  3. Disconnect the antenna cable (A) and SMK unit connectors (B).

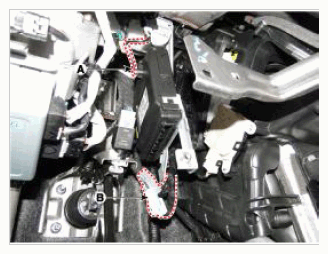

    Fig 1: Disconnecting Antenna Cable And SMK Unit Connectors
    G11669798Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove SMK unit (A) after loosening the mounting nuts.

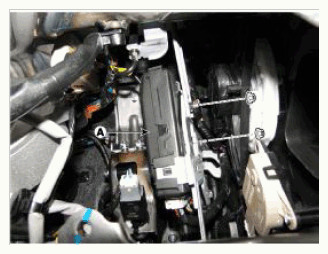

    Fig 2: Removing SMK Unit
    G11669799Courtesy of HYUNDAI MOTOR AMERICA
