Liftgate Open Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the liftgate trim.

    (Proceed to Body - "LIFTGATE TRIM ")

  3. Remove the liftgate back panel.

    (Proceed to Body - "LIFTGATE ")

  4. Remove the liftgate open switch (A) after loosening the mounting screws.

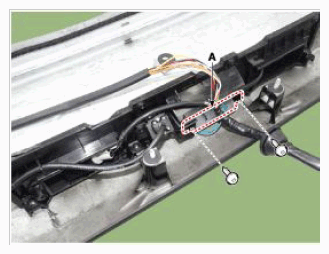

    Fig 1: Removing Liftgate Open Switch Mounting Screws
    G11669805Courtesy of HYUNDAI MOTOR AMERICA
