Repair Procedures: Removal: Buzzer

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front left wheel guide.

    (Proceed to Body - "FRONT WHEEL GUARD ")

  3. Remove the buzzer (A) after disconnecting the connect.

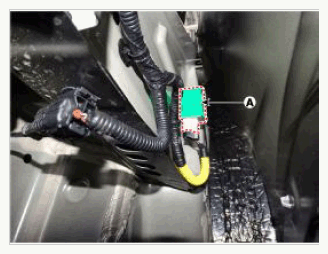

    Fig 1: Removing Buzzer
    G11669803Courtesy of HYUNDAI MOTOR AMERICA
