Liftgate Open Switch

  1. Check for continuity between the liftgate latch terminals.

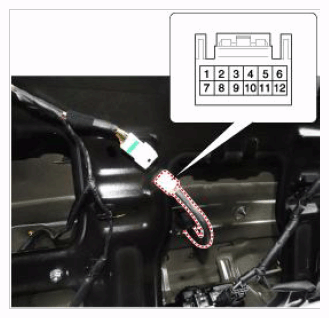

    Fig 1: Checking Continuity Between Liftgate Latch Terminals
    G11669809Courtesy of HYUNDAI MOTOR AMERICA
  2. If continuity is not specified, replace the switch.
Fig 2: Liftgate Latch Connector Terminals Reference Chart
G11669810Courtesy of HYUNDAI MOTOR AMERICA
