Door Outside Handle

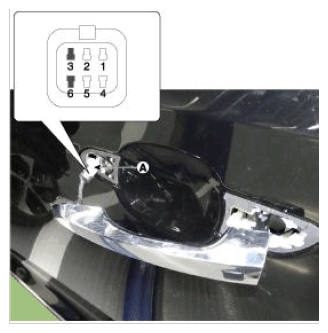

Disconnect the front door outside handle connector (A).

Fig 1: Disconnecting Front Door Outside Handle Connector
Courtesy of HYUNDAI MOTOR AMERICA
Check for continuity between terminals No 3 and No 6.

Fig 2: Checking Continuity Between Terminals No 3 And No 6

Courtesy of HYUNDAI MOTOR AMERICA

TERMINALS AND DESCRIPTIONS

No	Description
1	Door antenna (+)
2	Pocket lamp LED (+)
3	Door lock/unlock button switch
4	Door antenna (-)
5	Pocket lamp LED (-)
6	Door lock/unlock button switch ground

Fig 3: Door Lock/Unlock Switch Circuit Diagram

Courtesy of HYUNDAI MOTOR AMERICA
