Neutralization Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "Neutralization Mode".

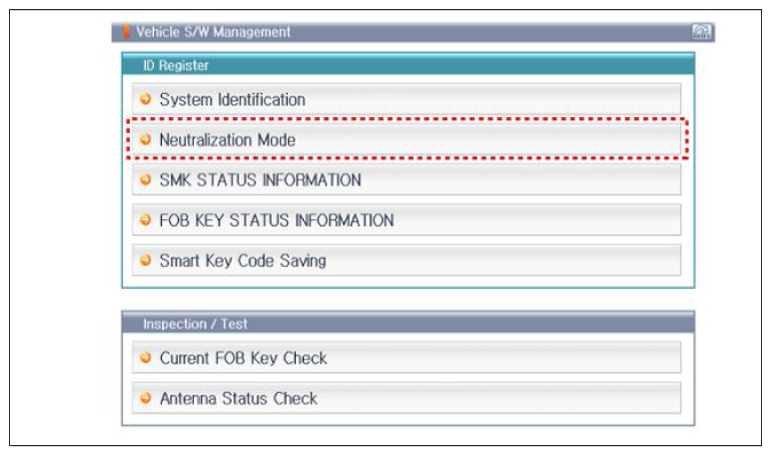

    Fig 1: Display - Neutralization Status Check
    G11669822Courtesy of HYUNDAI MOTOR AMERICA

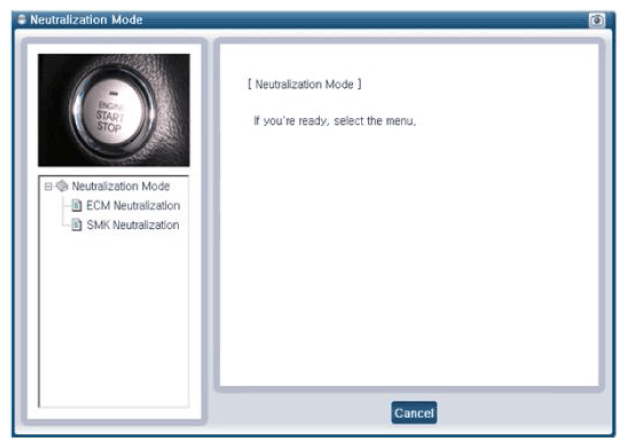

    Fig 2: Display - Neutralization Mode Screen
    G11669823Courtesy of HYUNDAI MOTOR AMERICA

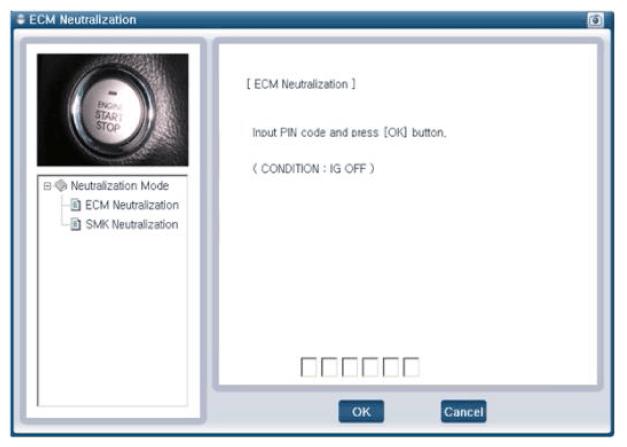

    Fig 3: Display - ECM Neutralization Mode Screen
    G11669824Courtesy of HYUNDAI MOTOR AMERICA

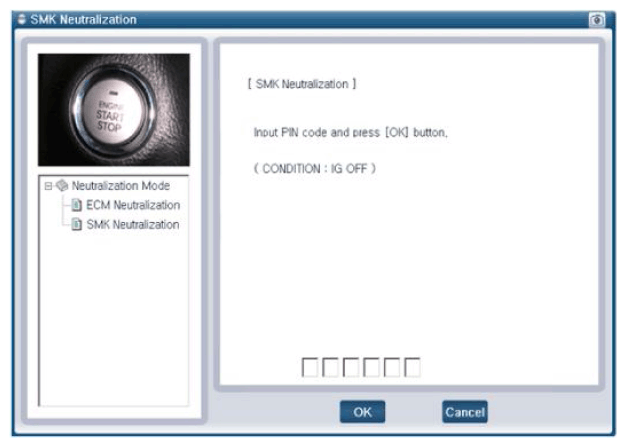

    Fig 4: Display - SMK Neutralization Mode Screen
    G11669825Courtesy of HYUNDAI MOTOR AMERICA
