Component Inspection

WARNING: This page is about a different variant/trim than selected.

■ Actuator Test Check

Connect Scantool to Data Link Connector (DLC).
IG key "ON"
Perform "Actuation Test" with Scantool.

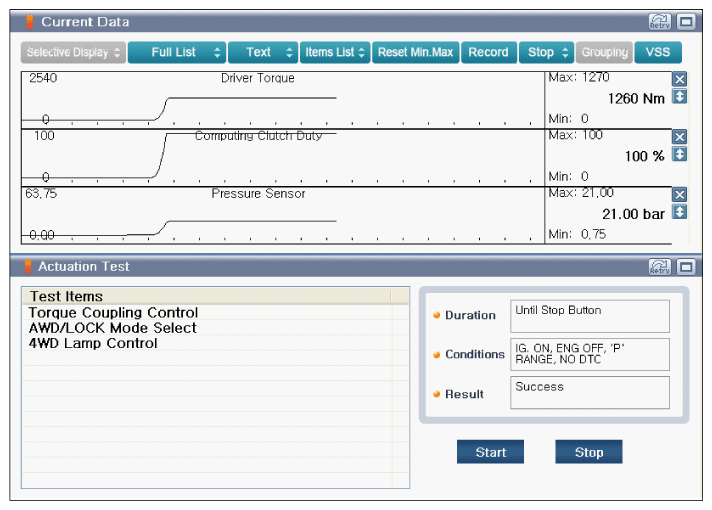

Fig 1: Scantool Display - Current Data And Actuation Test
Courtesy of HYUNDAI MOTOR AMERICA
Are any DTCs present?
YES
- Substitute with a known-good "Coupling" and check for proper operation. If the problem is corrected, replace "Coupling" and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
