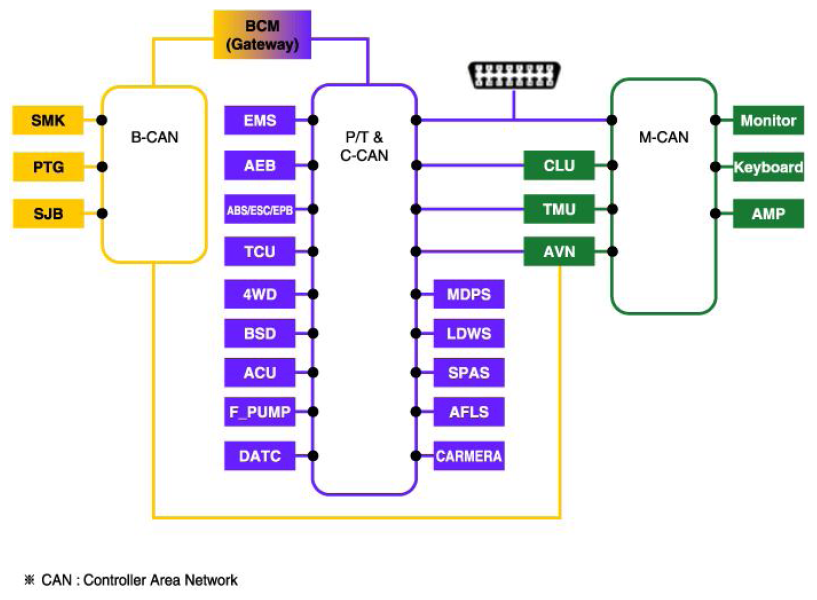

Communication Network Diagram
COMMUNICATION NETWORK ABBREVIATION AND EXPLANATION
| Abbreviation | Explanation |
|---|---|
| ACU | Airbag Control Unit |
| ABS | Anti-Lock Brake System |
| AEB | Autonomous Emergency Braking |
| AFLS | Adaptive Front Lighting System |
| AMP | Amplifier |
| AVN | Head Unit (Audio/AVN) |
| B_CAN | Body Controller Area Network |
| BCM | Body Control Module |
| BSD | Blind Spot Detection |
| C_CAN | Chassis Controller Area Network |
| CLU | Cluster Module |
| CAMERA | Rear View Camera |
| DATC | Dual Automatic Temp Control |
| ESC | Electronic Stability Program |
| EPB | Electronic Parking Brake |
| EMS | Engine Management System |
| F_PUMP | Fuel Pump |
| LDWS | Lane Departure Warning System |
| M_CAN | Multi media Controller Area Network |
| MDPS | Motor Driven Power Steering |
| P_CAN | Powertrain Controller Area Network |
| PTG | Power Liftgate |
| SJB | Smart Junction Block |
| SMK | Smart Key Unit |
| SPAS | Smart Parking Assist System |
| TCU | Transmission Control Unit |
| TMU | Telematics System |
| 4WD | 4 Wheel Drive System |
