Components and Components Location: Components

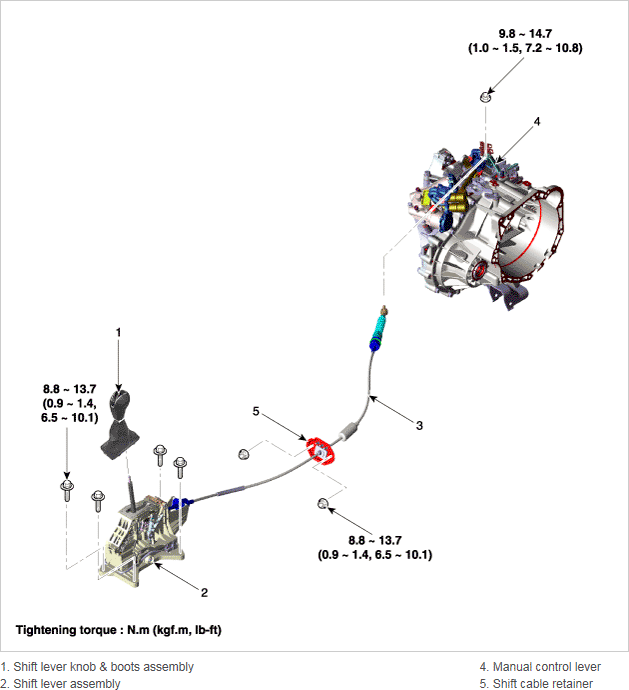

Fig 1: Shift Lever Components Location With Torque Specifications

G11675965

Courtesy of HYUNDAI MOTOR AMERICA
