Home >> Hyundai >> 2016 >> Tucson Eco, FWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Dual Clutch Transmission Control System - 1.6L >> Input Shaft Speed Sensor >> Components and Components Location >> Components

Components and Components Location: Components

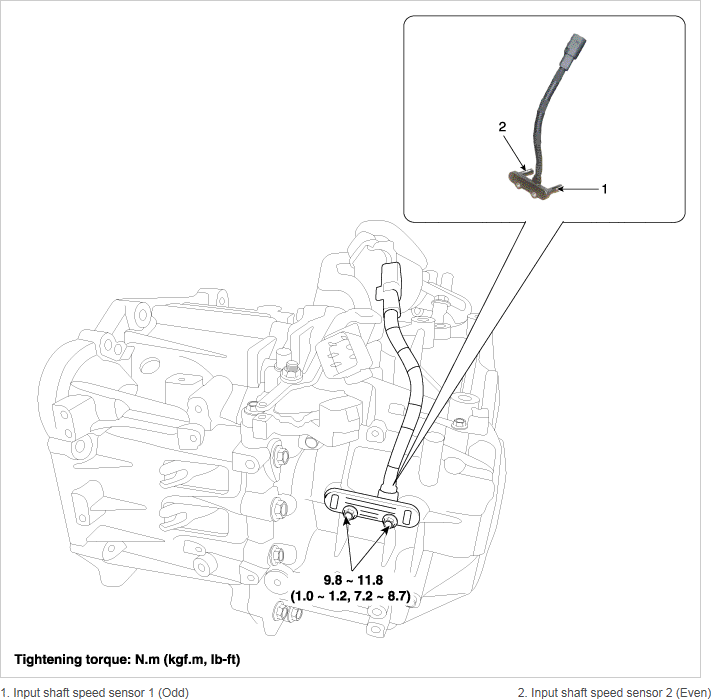

Fig 1: Exploded View Of Input Shaft Speed Sensor With Torque Specification

G11675925

Courtesy of HYUNDAI MOTOR AMERICA
