Home >> Hyundai >> 2016 >> Tucson Eco, FWD >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Dual Clutch Transmission Control System - 1.6L >> Input Shaft Speed Sensor 1 >> Components and Components Location >> Components

Components and Components Location: Components

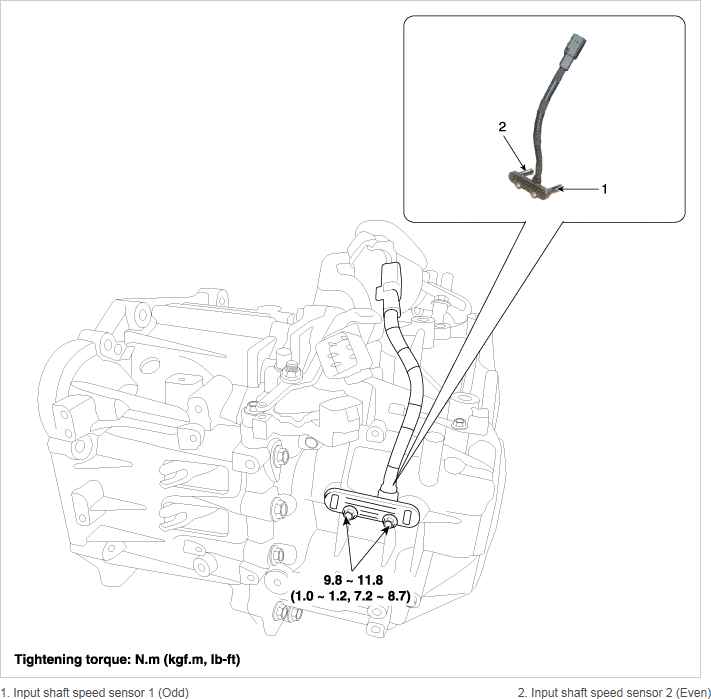

Fig 1: Input Shaft Speed Sensor 1 Components Location

G11675918

Courtesy of HYUNDAI MOTOR AMERICA
