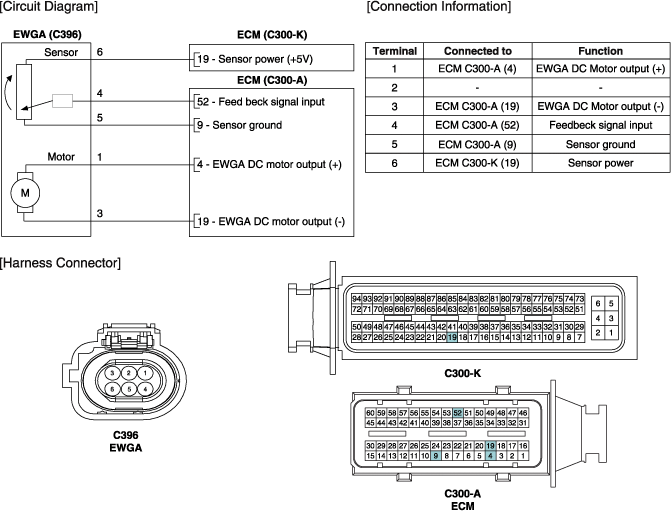

Home >> Hyundai >> 2016 >> Tucson Eco, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L >> Electric WGT Control Actuator >> Schematic Diagrams >> Circuit Diagram
