Repair Procedures: Replacement: Removal

CAUTION:

NOTE:

Remove the front pillar trim.
(Proceed to: Interior Trim - "FRONT PILLAR TRIM ")
Remove the cowl top cover.
(Proceed to: "COWL TOP COVER ")
Using a cutter (A) knife, carefully remove the windshield glass molding.
Information
- Use the cutter with a 20 to 30 cm-long blade.
Fig 1: Removing Windshield Glass Molding Using Cutter Knife
Courtesy of HYUNDAI MOTOR AMERICA

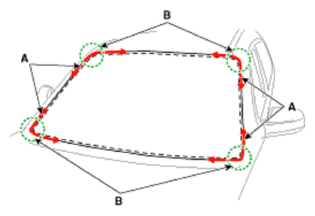

Cut off the sealant on the edge (B) while pulling the piano wire (A) to the left and right.
CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires.
- Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.
Fig 2: Pulling Piano Wire To Left And Right
Courtesy of HYUNDAI MOTOR AMERICA
Put in a piano wire (A) through the corner of the windshield glass and insert wire grips into both ends of the wire.

Fig 3: Inserting Wire Grips Into Wire Ends
Courtesy of HYUNDAI MOTOR AMERICA

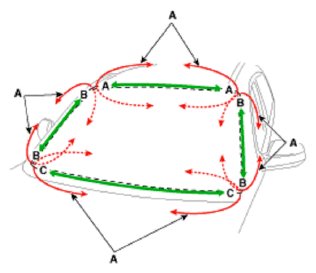

Cut off the sealant on (A-A), (B-B), (C-C), while pulling a piano wire (A) to the left and right.
CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.
Fig 4: Cutting Off Sealant Using Piano Wire (Left And Right)
Courtesy of HYUNDAI MOTOR AMERICA

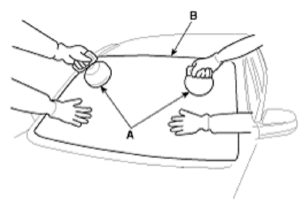

Remove the windshield glass (B) carefully using the glass holder (A).

Fig 5: Removing Windshield Glass Using Glass Holder

Courtesy of HYUNDAI MOTOR AMERICA
