FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB Key Status INFO".

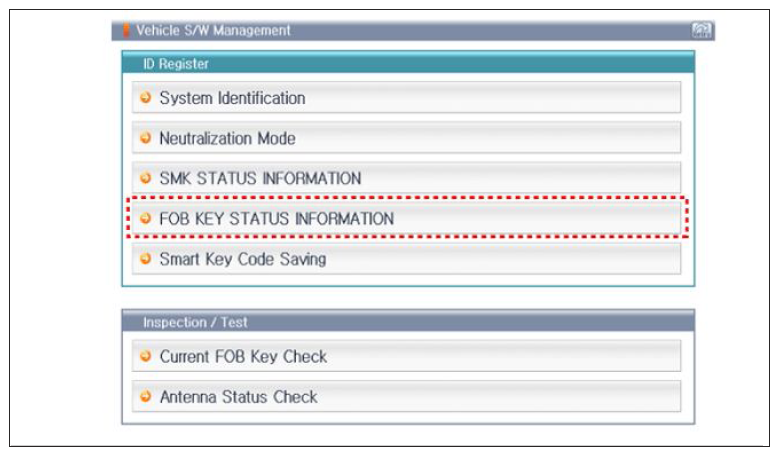

Fig 1: Display - FOB Status Check Screen
G11669818Courtesy of HYUNDAI MOTOR AMERICA

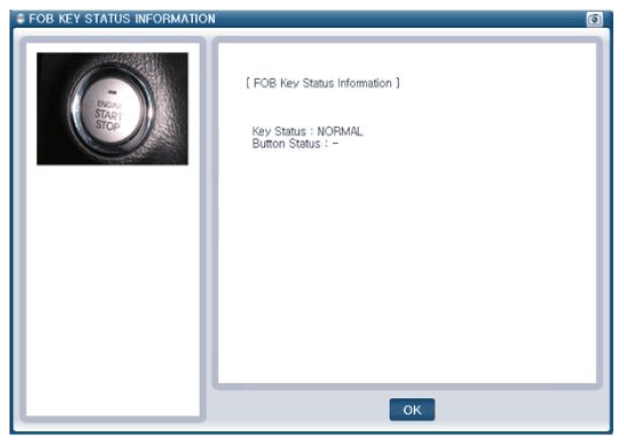

Fig 2: Display - FOB Key Status Information Screen
G11669819Courtesy of HYUNDAI MOTOR AMERICA
