Compensation Requirement and Procedure

Simultaneous replacement of 4WD ECU (Controller) and coupling
- Does not require compensation.
Replacement of coupling only
- Reset the 4WD ECU's (Controller) clutch learning.

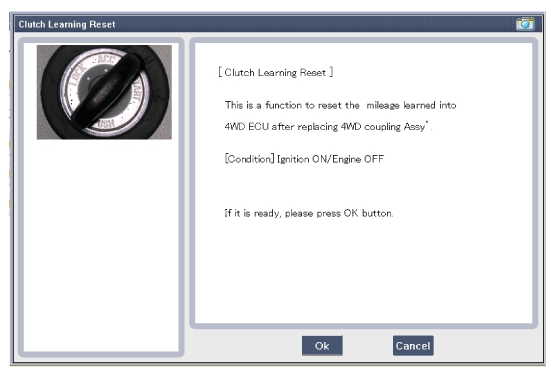

Fig 1: Screen Display - Clutch Learning Reset (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

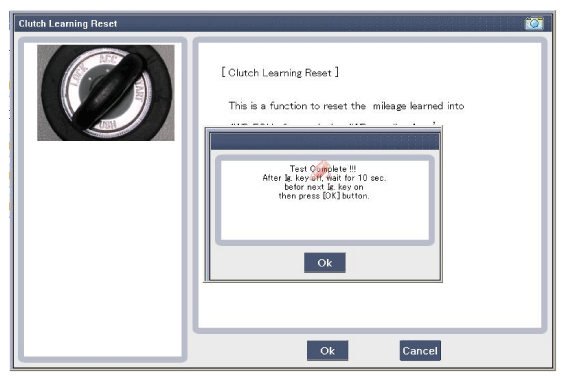

Fig 2: Screen Display - Clutch Learning Reset (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Replacement of 4WD ECU (Controller) only
- Before replacement: Check the ECU's clutch learning.

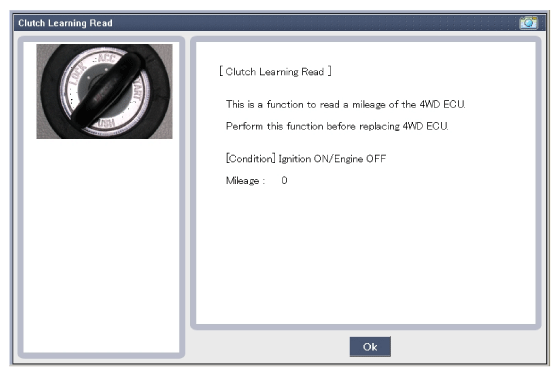

  Fig 3: Screen Display - 4WD ECU (Controller; 1 Of 2)
  Courtesy of HYUNDAI MOTOR AMERICA

  Fig 4: Screen Display - 4WD ECU (Controller; 2 Of 2)
  Courtesy of HYUNDAI MOTOR AMERICA
- After replacement: Enter the original ECU's clutch learning into the replacement ECU.

  Fig 5: Screen Display - Clutch Learning Write
  Courtesy of HYUNDAI MOTOR AMERICA
