Monitor GDS Data

Connect GDS to Data Link Connector (DLC).
Ignition "ON" & Engine "ON".
Driving 1st speed to 6th speed at D-range.
Select "Current Data" mode and monitor "Oil pump speed Actual RPM" parameter current value.
Specification: See below data

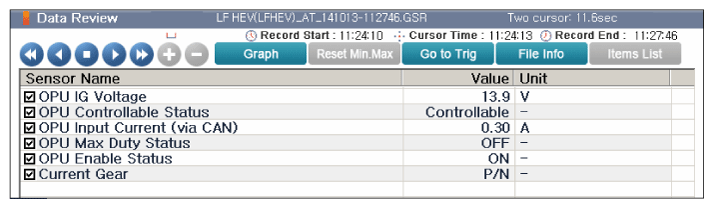

Fig 1: Screen Display - "P, N" Range
Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Screen Display - "R" Range
Courtesy of HYUNDAI MOTOR AMERICA

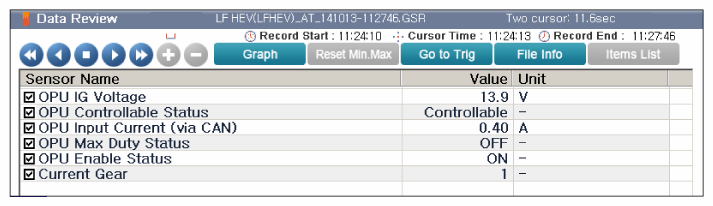

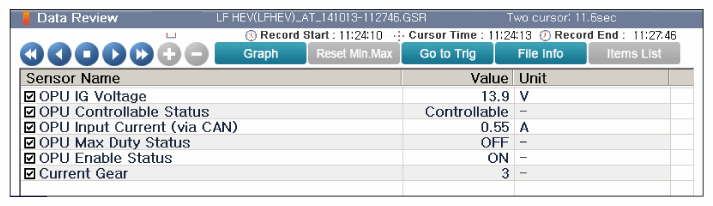

Fig 3: Screen Display - "D" Range 1st Gear
Courtesy of HYUNDAI MOTOR AMERICA

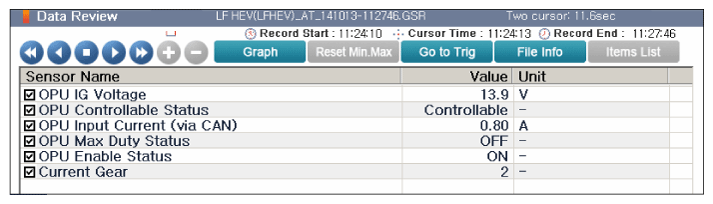

Fig 4: Screen Display - "D" Range 2nd Gear
Courtesy of HYUNDAI MOTOR AMERICA

Fig 5: Screen Display - "D" Range 3rd Gear
Courtesy of HYUNDAI MOTOR AMERICA

Fig 6: Screen Display - "D" Range 4th Gear
Courtesy of HYUNDAI MOTOR AMERICA

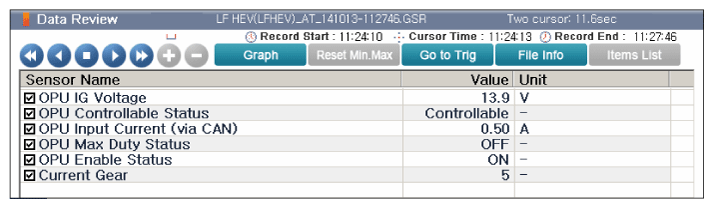

Fig 7: Screen Display - "D" Range 5th Gear
Courtesy of HYUNDAI MOTOR AMERICA

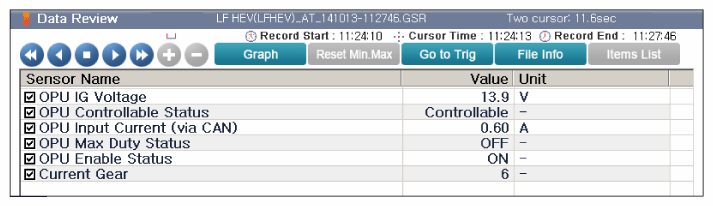

Fig 8: Screen Display - "D" Range 6th Gear
Courtesy of HYUNDAI MOTOR AMERICA
Is Oil pump speed Actual RPM value within specific?
YES
- Fault is intermittent caused by poor contact of PCM/TCM & sensor and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "Verification Vehicle Repair " procedure.
NO
- Go to "Wiring Inspection " procedure.
