Signal Waveform & Data

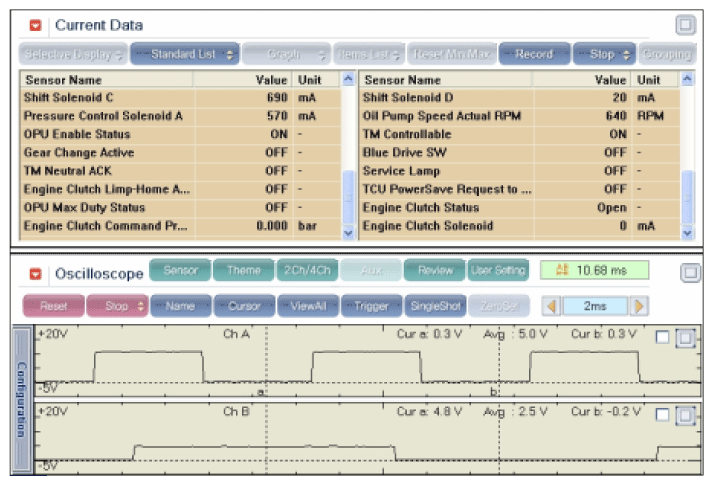

Fig 1: Screen Display - Channel A OPU Status, Channel B Hall Signal (Normal Situation)
G11646446Courtesy of HYUNDAI MOTOR AMERICA

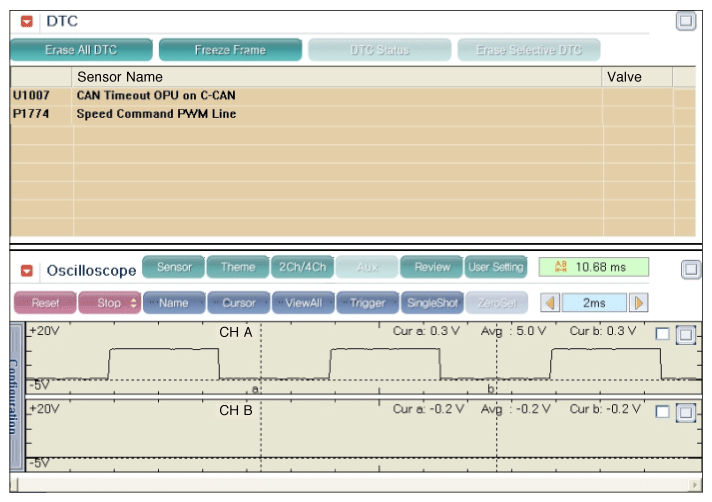

Fig 2: Screen Display - Channel A OPU Status, Channel B Hall Signal (PWM Motor Speed Line Error And CAN Line Error Too)
G11646447Courtesy of HYUNDAI MOTOR AMERICA
