Components and Components Location: Components

WARNING: This page is about a different car, the 2017 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

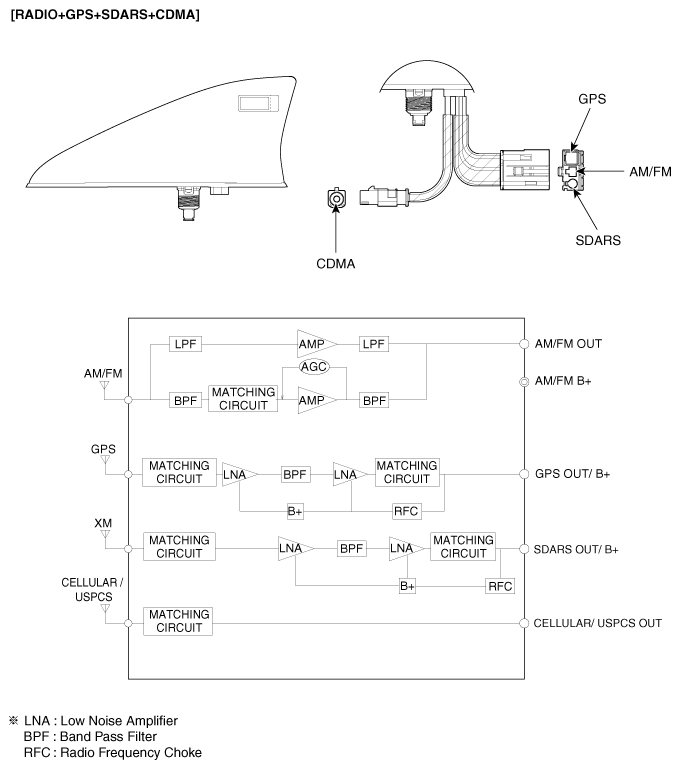

Fig 1: Antenna Components (Radio + GPD + SDARS + CDMA)
G12054284Courtesy of HYUNDAI MOTOR AMERICA

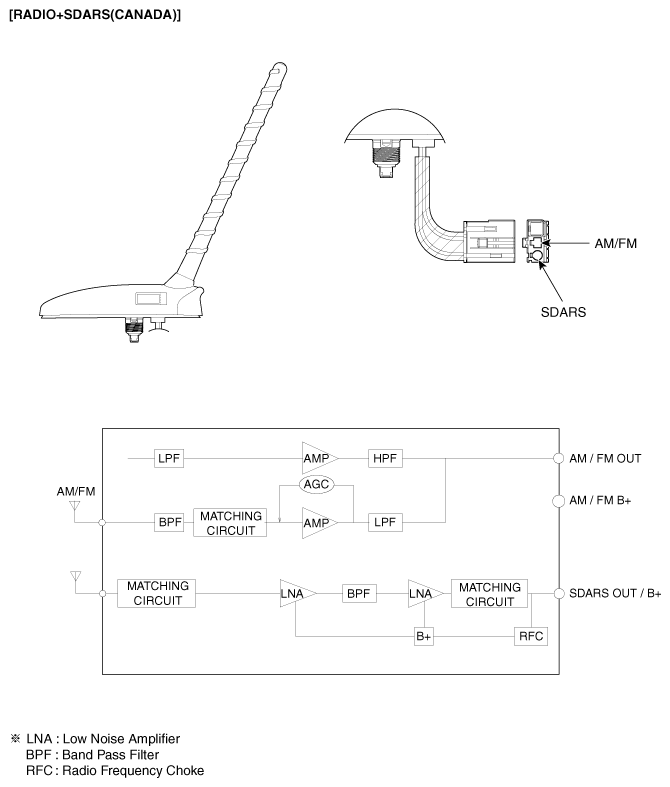

Fig 2: Antenna Components - Radio + SDARS (Canada)
G12054285Courtesy of HYUNDAI MOTOR AMERICA
