Section 179 (Lighting System)
>>
Components and Components Location
>>
Component Location
Component Location
WARNING:
This page is about a different car, the 2017 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

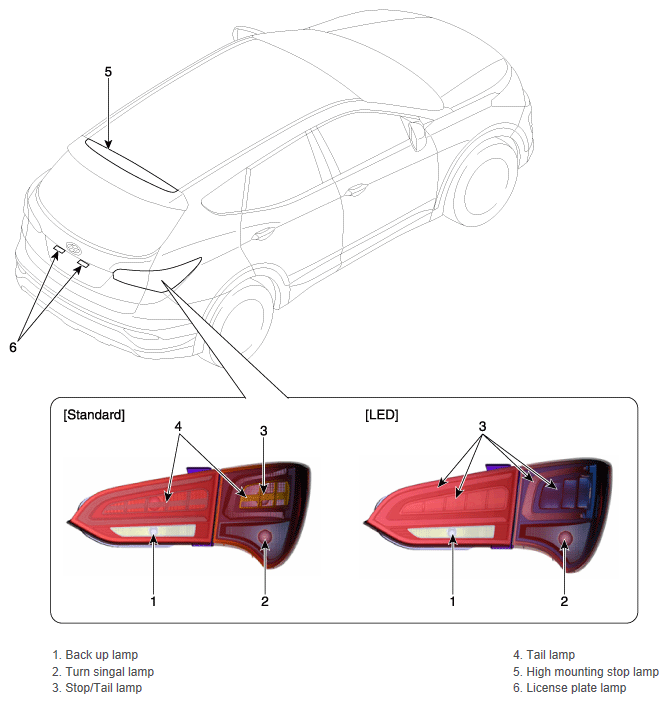

Fig 1: Lighting System Components (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

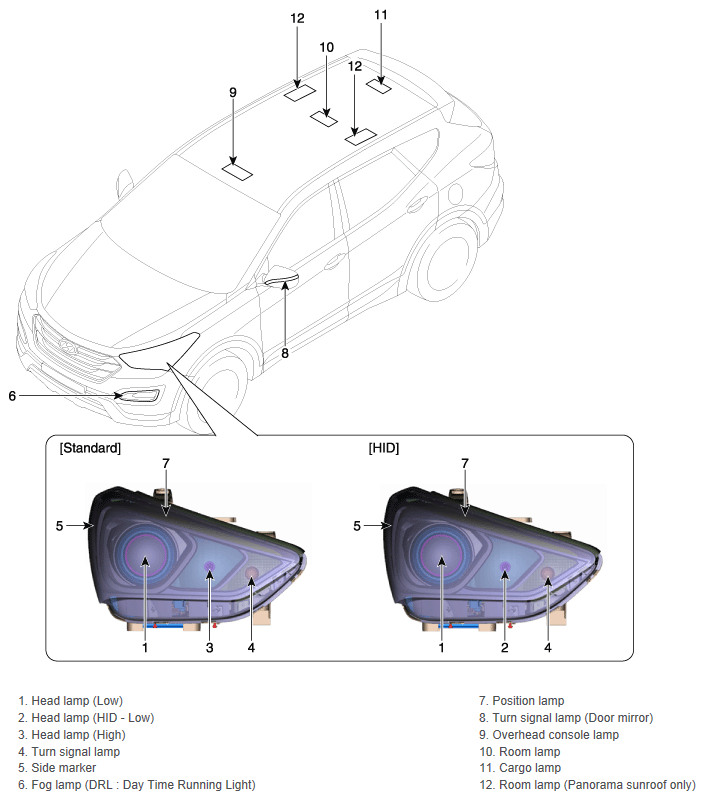

Fig 2: Lighting System Components (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
