General Information: General Description
WARNING: This page is about a different car, the 2016 Hyundai Elantra GT and 2015 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
This is DTC which is related with communication error between BCM and other units.

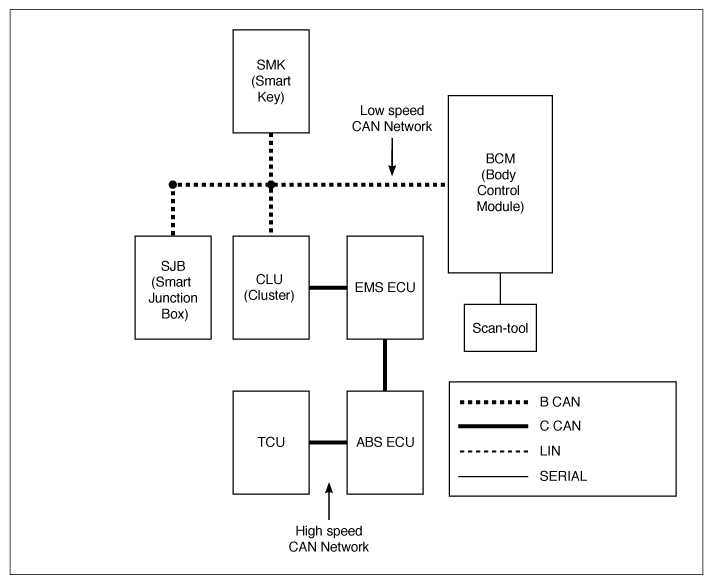

* Body CAN communication Control Units: BCM (Body Control Module), CLU (Cluster), SMK (Smart Key), SJB (Smart Junction Box).
*1 CAN (Controller Area Network): CAN is serial bus communication type which links not only communication system but also control units each other.
*2 LIN (Local Interconnect Network): LIN is serial communication type which is used in electrical control system. (This is less expensive.)
