Inspection flow

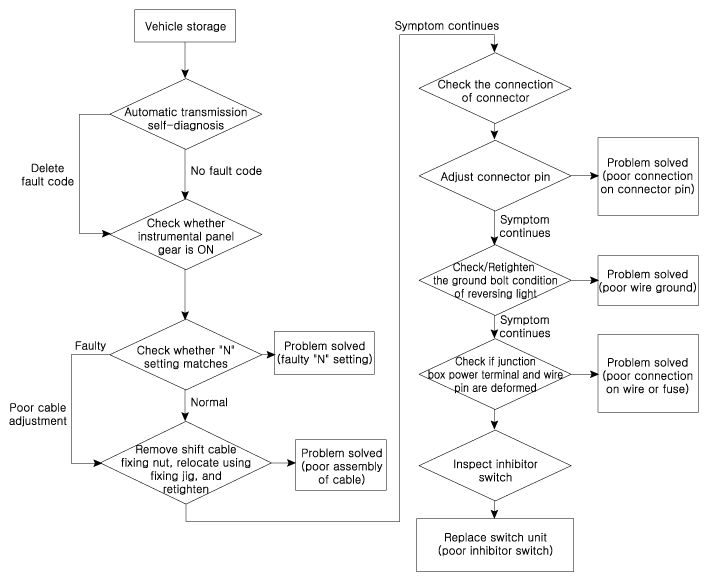

Fig 1: Inhibitor Switch Inspection Flowchart
G11631350Courtesy of HYUNDAI MOTOR AMERICA
