Repair Procedures: Installation

Install in the reverse order of removal.
In case of the reinstallation.
1. Replace the oil seal with a new one when ATF leak occurred because of differential oil seal damage.
  NOTE: When installing the new oil seal, use the special service tool (SST No.:09452-3D100, 09231-H1100).
2. Check the ATF level after refilling the automatic transaxle with fluid. (Refer to Hydraulic System - "Fluid ")
3. Clear the diagnostic trouble codes (DTC) using the GDS.
  NOTE: Even though disconnecting the battery negative terminal, the DTCs will not be cleared. So, be sure to clear the DTCs using the GDS.
4. Bleed air from the hybrid motor cooling system using GDS. (Refer to Hybrid Motor System- "Coolant ")
5. Resolver sensor calibration. (Refer to Hybrid Motor System-"Resolver sensor ")
6. Clutch pressure sensor calibration. (Refer to Hybrid control system -"Clutch Pressure Sensor (CPS) ")
In case of the replacing with a new automatic transaxle.
1. Remove the hanger bracket (A) from the new automatic transaxle.

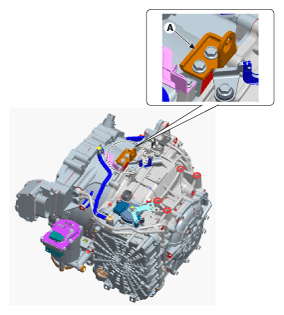

  Fig 1: Locating Automatic Transaxle Hanger Bracket
  Courtesy of HYUNDAI MOTOR AMERICA

  NOTE:
  New automatic transaxle is already filled with specified quantity ATF.

  For that reason, it does not necessary to refill and check the ATF.
2. Clear the diagnostic trouble codes (DTC) using the GDS.
  Information

  Even though disconnecting the battery negative terminal, the DTCs will not be cleared. So, be sure to clear the DTCs using the GDS.
3. Reset the automatic transaxle adaptive values using the GDS.

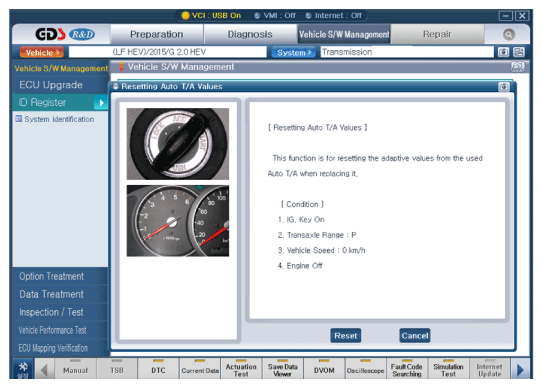

  Fig 2: GDS Screen Display - Automatic Transaxle Adaptive Values
  Courtesy of HYUNDAI MOTOR AMERICA
4. Perform EOP flow deviation learning using the GDS.

  Fig 3: GDS Screen Display - EOP Control Adaptation
  Courtesy of HYUNDAI MOTOR AMERICA
5. Bleed air from the hybrid motor cooling system using GDS. (Refer to Hybrid motor system-"Coolant ")
6. Resolver sensor calibration. (Refer to Hybrid Motor System-"Resolver sensor ")
7. Clutch pressure sensor calibration. (Refer to Hybrid Control System-"Clutch Pressure Sensor (CPS) ")
8. Perform the TCM adaptive values learning procedure. (Refer to Automatic Transaxle Control System - "REPAIR PROCEDURES ")
