Rear Power Window Switch

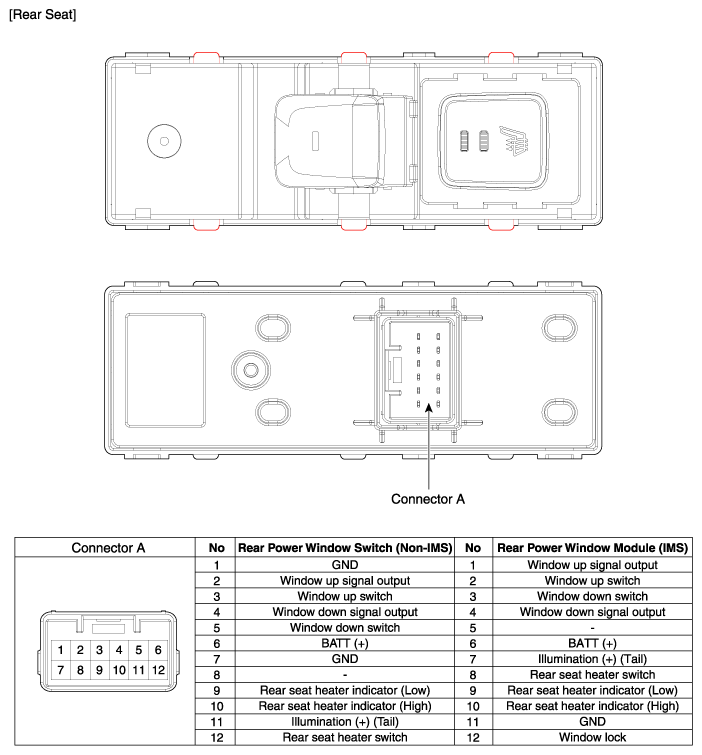

Fig 1: Rear Power Window Switch Connector Terminals Identification

G11633108

Courtesy of HYUNDAI MOTOR AMERICA
