Home >> Hyundai >> 2016 >> Sonata Plug-In Hybrid Limited >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows (PHEV) >> Power Window Motor >> Components and Components Location >> Components

Components and Components Location: Components

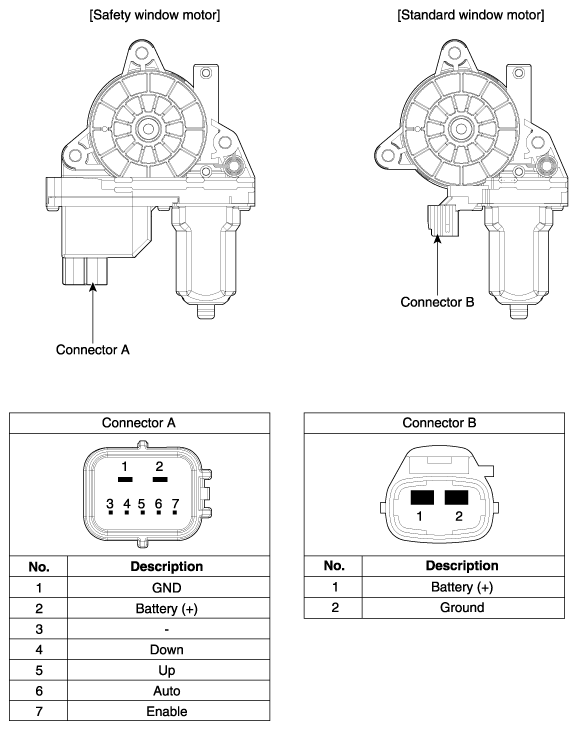

Fig 1: Power Window Motor Connector Terminals Identification

G11633097

Courtesy of HYUNDAI MOTOR AMERICA
