Components And Components Location: Components

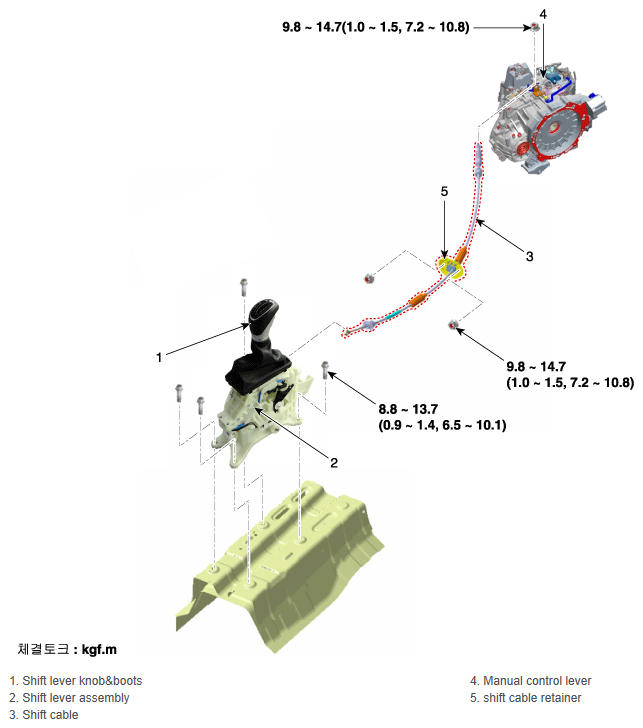

Fig 1: Shift Cable Components With Torque Specification

G12061233

Courtesy of HYUNDAI MOTOR AMERICA
