Signal Waveform

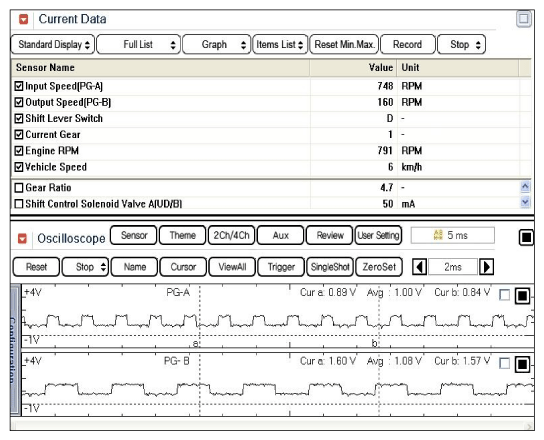

Fig 1: Scantool Display - Input/Output Speed Sensor At Low Speed
G12061075Courtesy of HYUNDAI MOTOR AMERICA

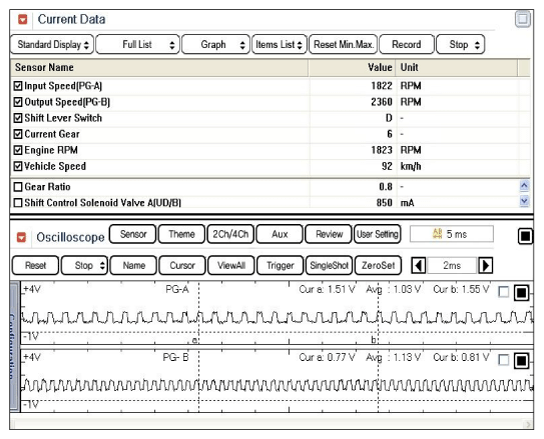

Fig 2: Scantool Display - Input/Output Speed Sensor At High Speed
G12061076Courtesy of HYUNDAI MOTOR AMERICA
