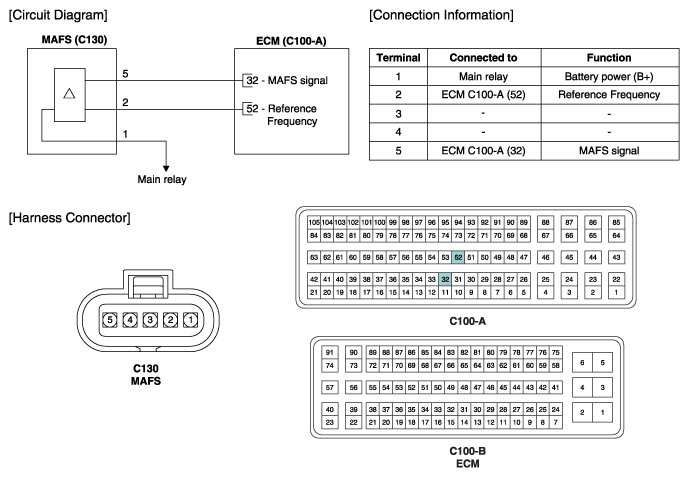

Home >> Hyundai >> 2016 >> Sonata Hybrid >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (HEV) >> Mass Air Flow Sensor (MAFS) >> Schematic Diagrams >> Circuit Diagram
