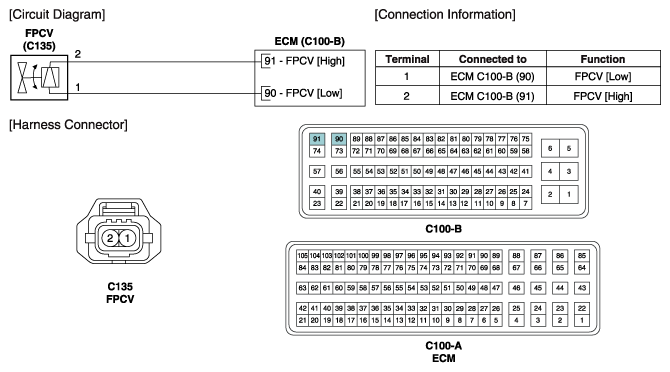

Home >> Hyundai >> 2016 >> Sonata Hybrid >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (HEV) >> Fuel Pressure Control Valve >> Schematic Diagrams >> Circuit Diagram
