Signal Waveform

Fig 1: Screen Display - Duty Control EEGR Motor (-) At Deceleration Or Idle
G12060855Courtesy of HYUNDAI MOTOR AMERICA

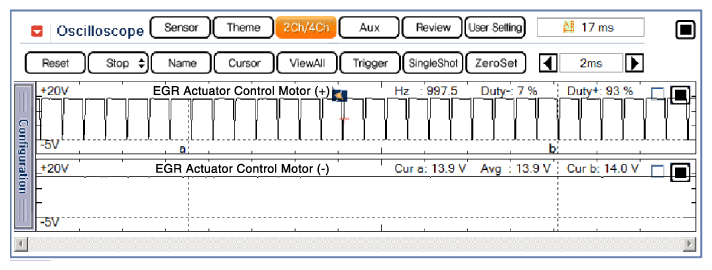

Fig 2: Screen Display - Duty Control EEGR Motor (+) At Acceleration
G12060856Courtesy of HYUNDAI MOTOR AMERICA
