Inspection Flow

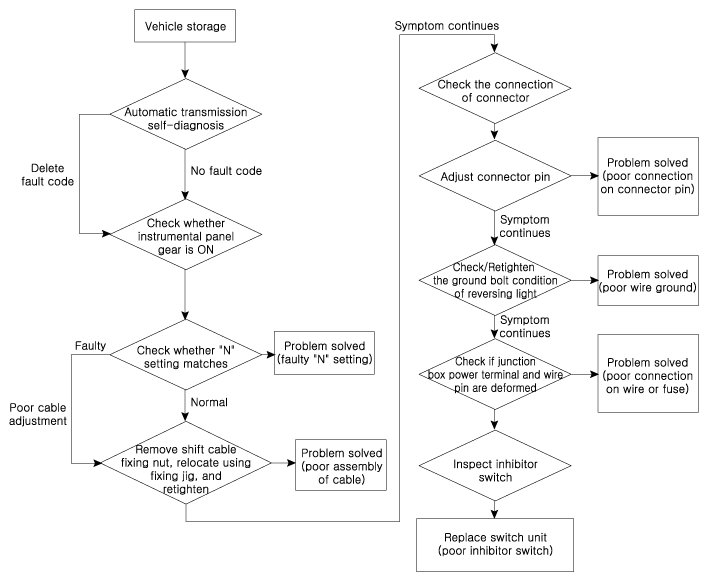

Fig 1: Inhibitor Switch Inspection Flow Chart
G10571228Courtesy of HYUNDAI MOTOR AMERICA
