Repair Procedures: Replacement

WARNING: This page is about a different car, the 2016 Hyundai Elantra GT and 2015 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to protect your hands.

NOTE:

Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Using a screwdriver or remover, remove the front pillar trim (A).

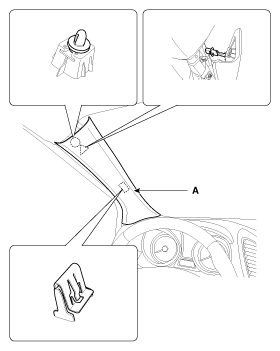

Fig 1: Front Pillar Trim Location
Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Replace any damaged clips.
