Resolver Calibration
WARNING: This page is about a different car, the 2015 Hyundai Sonata. However, it is still accessible from the selected car via links, so may be relevant.

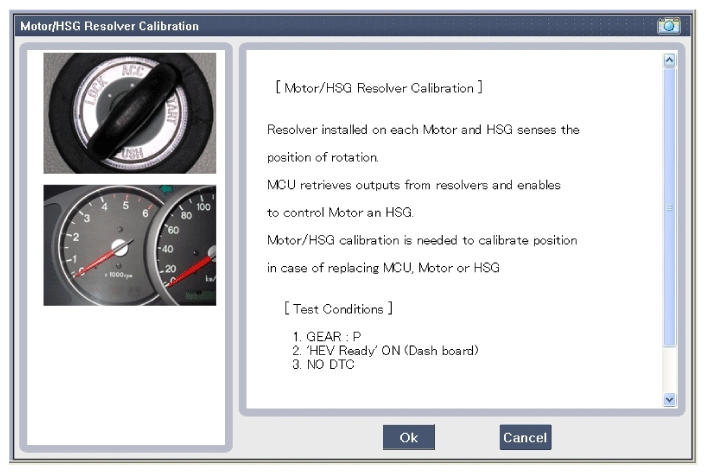

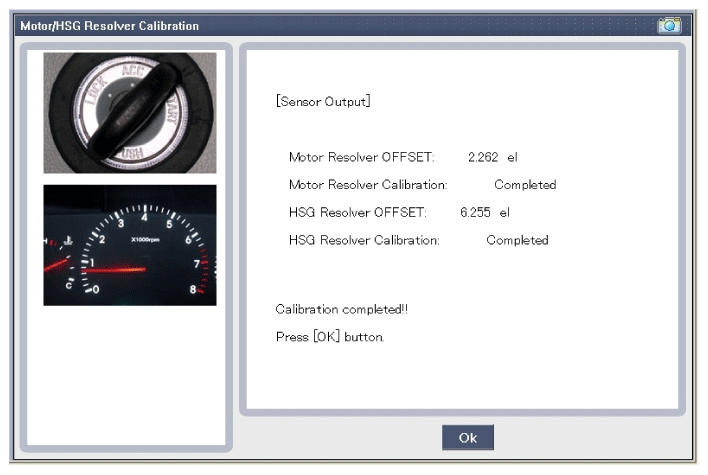

This calibration task is required each time the motor or inverter (MCU) is replaced or removed and remounted. This calibration is performed with the GDS.
- Conduct Calibration after replacing below components:
- Hybrid Drive Motor
- Hybrid Starter Generator (HSG)
- Motor Control Unit (MCU)
