Repair Procedures: Adjustment
WARNING: This page is about a different car, the 2016 Hyundai Elantra GT and 2015 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

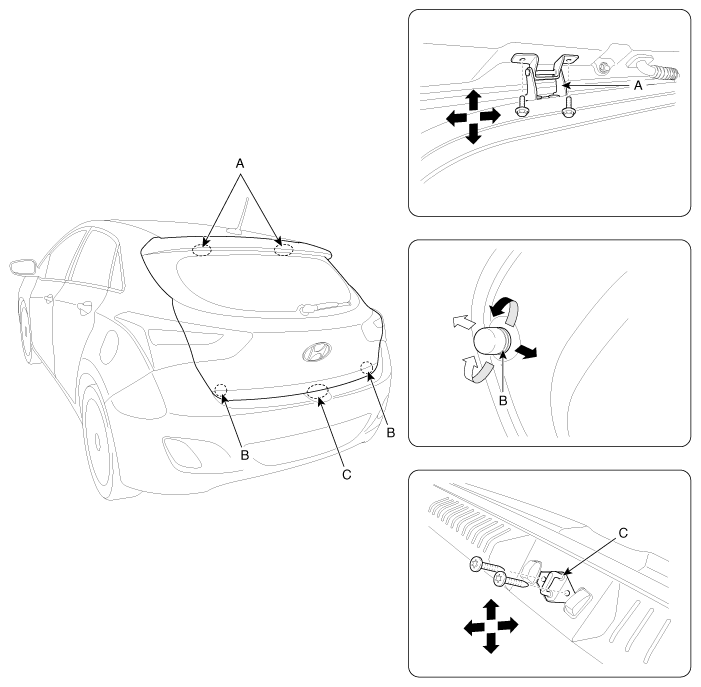

- After loosening the tail gate hinge (A) mounting bolt, adjust the tail gate by moving it up or down, or right or left.
- Adjust the tail gate height by turning the tail gate overslam bumpers (B).
- After loosening the tail gate striker (C) mounting bolts, adjust the tail gate striker by moving it up or down, or right or left.
