Communication Circuit Inspection

WARNING: This page is about a different car, the 2016 Hyundai Elantra GT and 2015 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Check for Open in Harness
1. Ignition "OFF"
2. Disconnect GPS Antenna and TMU main harness connector.
3. Measure resistance between Communication terminal of GPS Antenna harness connector and Communication terminal of TMU harness connector.
  Specification: below 1Ω

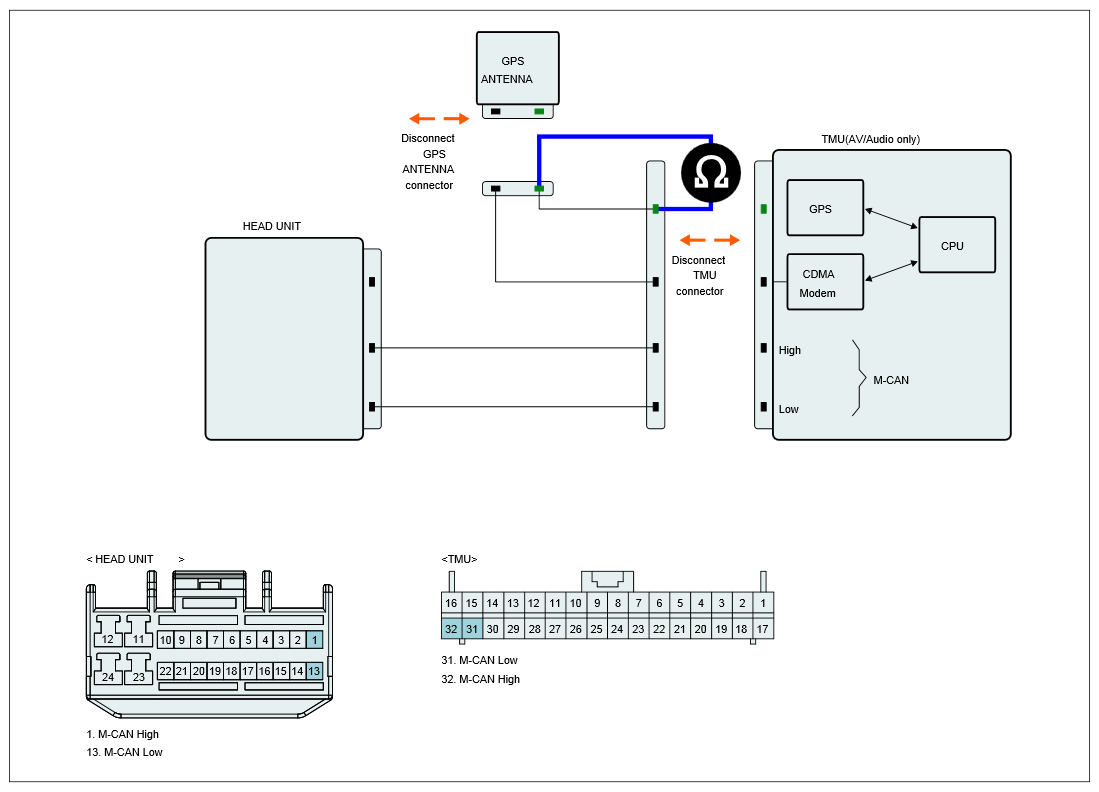

  Fig 1: Measuring Resistance Between Connector Terminals
  Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured resistance within specifications?
  YES
  - Refer to: next procedure.
  NO
  - Check for open in harness & Repair as necessary and then Refer to: "VERIFICATION OF VEHICLE REPAIR " procedure.
Check Short to Ground in Harness
1. Ignition "OFF".
2. Disconnect GPS Antenna and TMU main harness connector.
3. Measure resistance between Communication terminal of TMU harness connector and chassis ground.
  Specification: Infinity

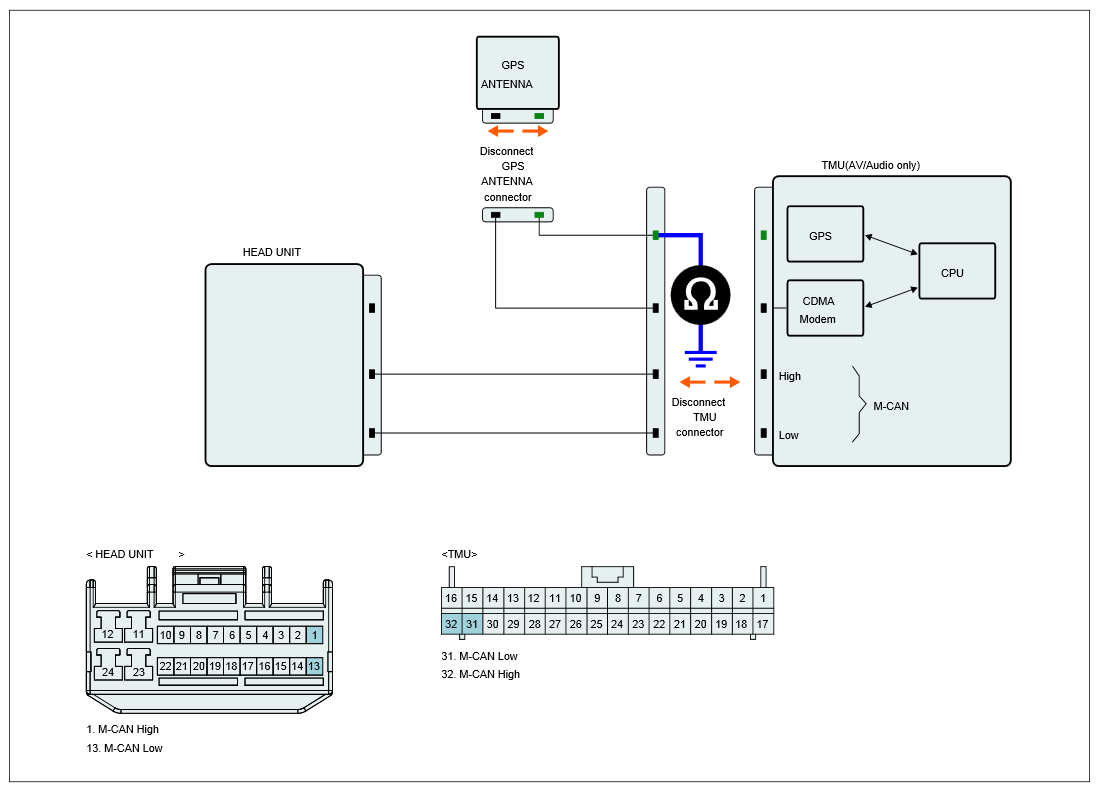

  Fig 2: Measuring Resistance Between Connector Terminals
  Courtesy of HYUNDAI MOTOR AMERICA
4. Is the measured resistance within specifications?
  YES
  - Check GPS antenna & TMU for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and Refer to: Refer to: "VERIFICATION OF VEHICLE REPAIR " procedure.
  - Substitute with a known-good GPS antenna and check for proper operation.
    If the problem is corrected, replace GPS antenna and then Refer to: "VERIFICATION OF VEHICLE REPAIR " procedure.
  - Substitute with a known-good TMU and check for proper operation.
    If the problem is corrected, replace TMU and then Refer to: "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Check for open or contact resistance in ground harness.
    Repair as necessary and then Refer to: "VERIFICATION OF VEHICLE REPAIR " procedure.
