Diagnostic Circuit Diagram

WARNING: This page is about a different car, the 2016 Hyundai Elantra GT and 2015 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

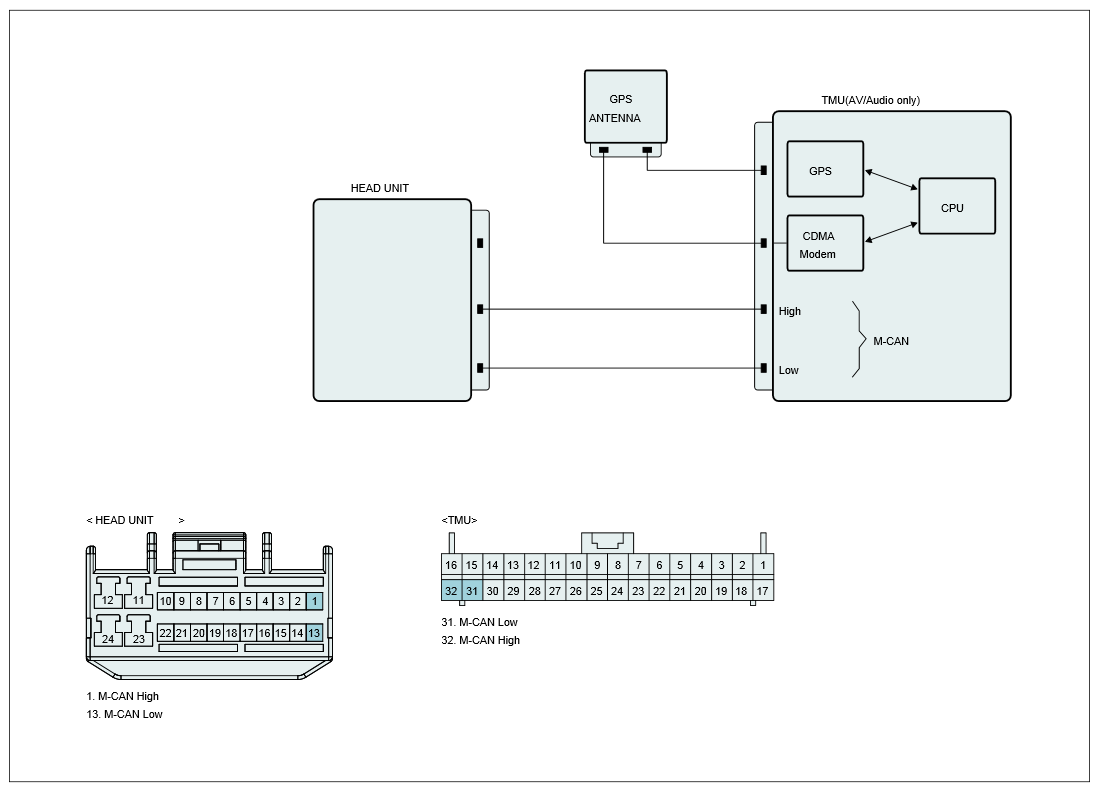

Fig 1: TMU Diagnostic Circuit Diagram
G10753830Courtesy of HYUNDAI MOTOR AMERICA
