Driver Power Window Switch

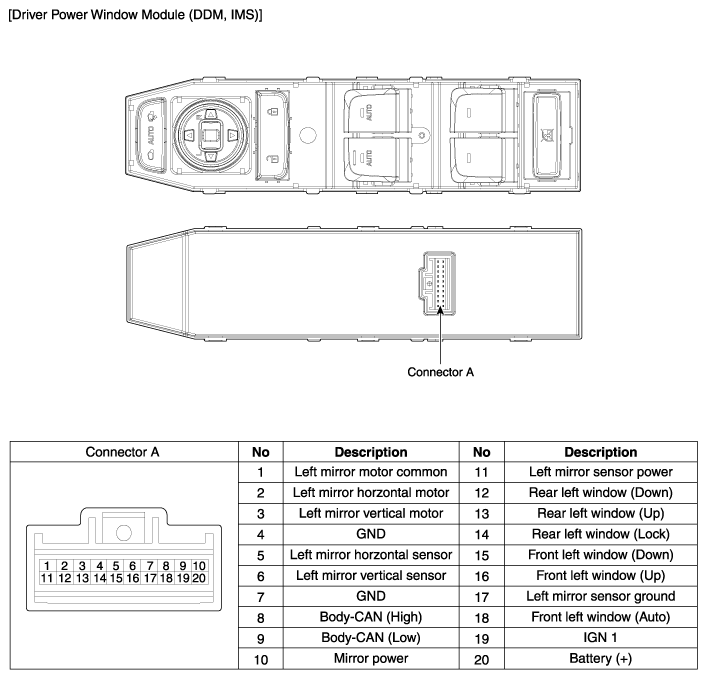

Fig 1: Identifying Driver Power Window Module (DMM, IMS) Connector
G10567847Courtesy of HYUNDAI MOTOR AMERICA

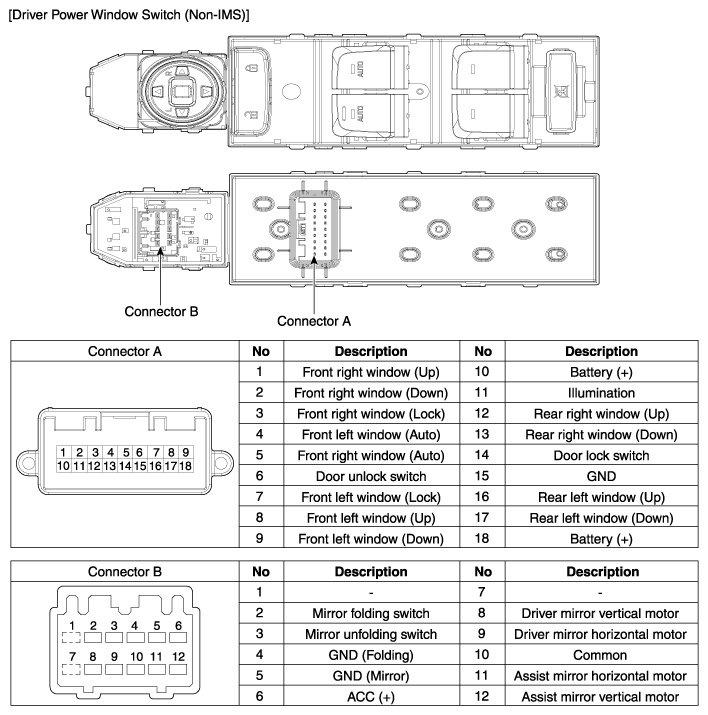

Fig 2: Identifying Driver Power Window Switch (Non - IMS) Connector
G10567848Courtesy of HYUNDAI MOTOR AMERICA
