FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB Key Status INFO".

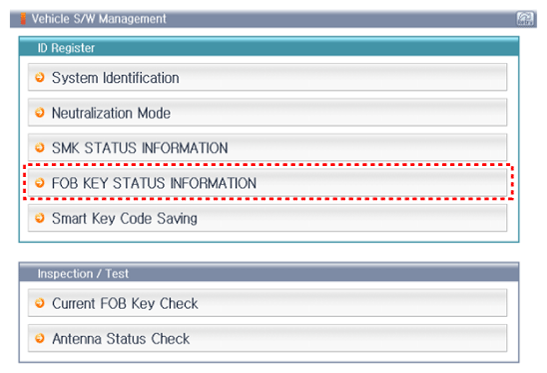

    Fig 1: Screen Display - FOB Key Status Info (1 Of 2)
    G10567582Courtesy of HYUNDAI MOTOR AMERICA

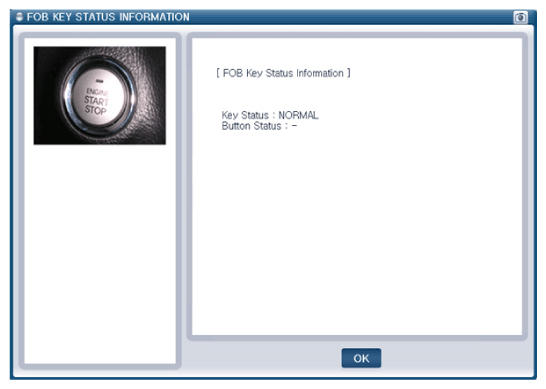

    Fig 2: Screen Display - FOB Key Status Info (2 Of 2)
    G10567583Courtesy of HYUNDAI MOTOR AMERICA
