Components and Components Location: Components

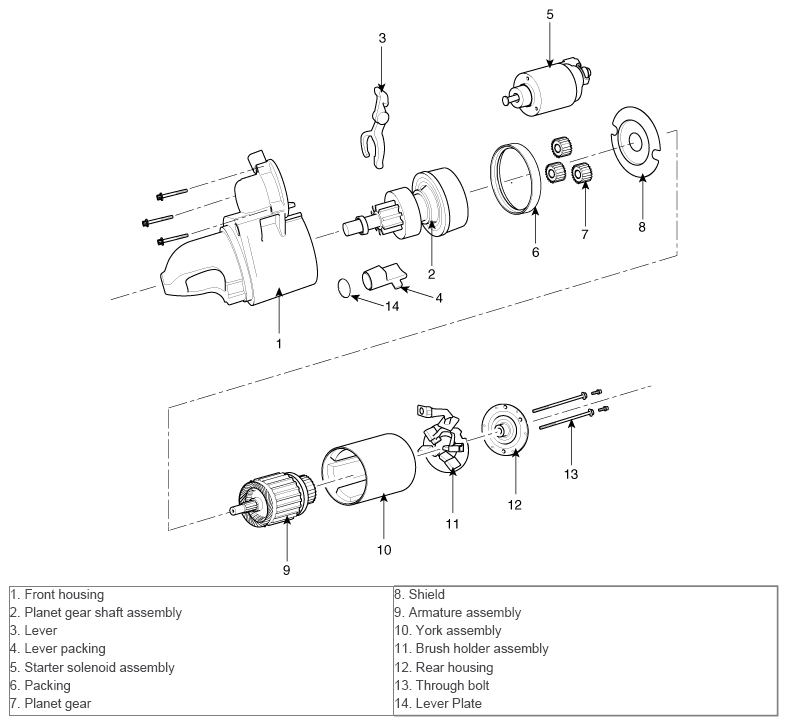

Fig 1: Starting System Components

G10574728

Courtesy of HYUNDAI MOTOR AMERICA
